Please note the hood is a custom item so will ship separately from the cabinet order in approx 4-6 weeks.
Optional liner/blower and ductless conversion kits are also available. The Trade-Wind liner/blower has a commercial grade stainless steel and galvanized steel construction, 2 LEDs (48" will have 3 LEDs), electronic touch control, remote control operation and dishwasher-safe baffle filters.*Please note that the range hood ducting and metal elbows are not included with the ductless conversion kits and must be purchased separately.*
The Broan liners are stainless steel for easy cleaning. The 300 Max Blower has 2 speeds,heat resistant LED lighting, and uses dishwasher-safe filters. The 450 Max Blower features heat sensing technology, heat resistant LED lighting,and uses dishwasher-safe filters. Broan ductless conversion kits include a charcoal filter, soffit grille, 90-degree stack boot, 7" round duct and a 6-7" round transition.*
Please select a hood size to see specific descriptions and specs for that size.
Specs for 30x36
Width 31.5" |Height 36" |Depth 20.25"

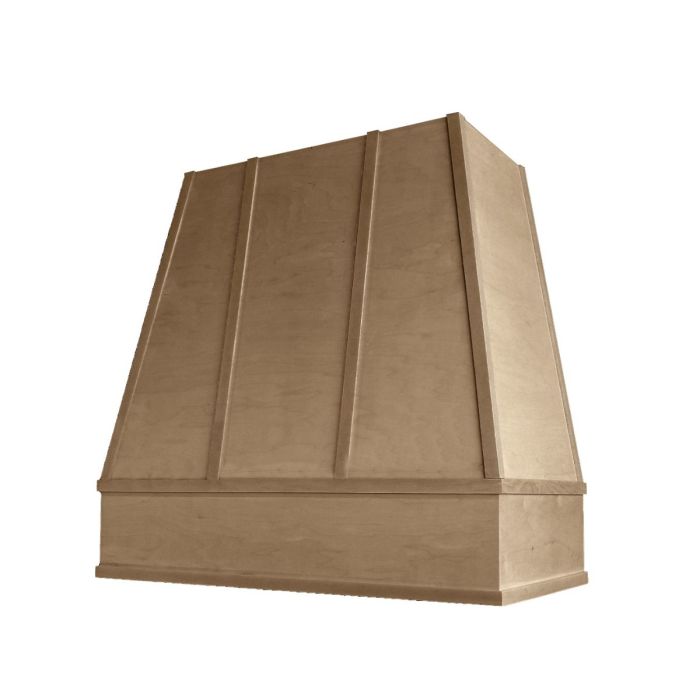

Strapped, tapered hood with block molding. Features a plywood and Maple construction. The hood base front panel is 30" but at the widest point with the molding, the total width is 31-1/2". The side panel is 19-1/2" deep, and 20-1/4" deep with the molding. The top of the chimney is 26" wide and 14-1/2" deep and the chimney section is trimmable by 6" to make the total height 30", if needed. The height of the panel and molding section on bottom is 8-1/4". The hood has a two-piece construction for easy mounting and access to fan and ducting. Ships assembled.
Specs for 30x48
Width 31.5" |Height 48" |Depth 20.25"
Strapped, tapered hood with block molding. Features a plywood and Maple construction. The hood base front panel is 30" but at the widest point with the molding, the total width is 31-1/2". The side panel is 19-1/2" deep, and 20-1/4" deep with the molding. The top of the chimney is 26" wide and 14-1/2" deep and the chimney section is trimmable by 6" to make the total height 42", if needed. The height of the panel and molding section on bottom is 8-1/4". The hood has a two-piece construction for easy mounting and access to fan and ducting. Ships assembled.
Specs for 36x36
Width 37.5" |Height 36" |Depth 20.25"
Strapped, tapered hood with block molding. Features a plywood and Maple construction. The hood base front panel is 36" but at the widest point with the molding, the total width is 37-1/2". The side panel is 19-1/2" deep, and 20-1/4" deep with the molding. The top of the chimney is 32" wide and 14-1/2" deep and the chimney section is trimmable by 6" to make the total height 30", if needed. The height of the panel and molding section on bottom is 8-1/4". The hood has a two-piece construction for easy mounting and access to fan and ducting. Ships assembled.
Specs for 36x48
Width 37.5" |Height 48" |Depth 20.25"
Strapped, tapered hood with block molding. Features a plywood and Maple construction. The hood base front panel is 36" but at the widest point with the molding, the total width is 37-1/2". The side panel is 19-1/2" deep, and 20-1/4" deep with the molding. The top of the chimney is 32" wide and 14-1/2" deep and the chimney section is trimmable by 6" to make the total height 42", if needed. The height of the panel and molding section on bottom is 8-1/4". The hood has a two-piece construction for easy mounting and access to fan and ducting. Ships assembled.
Specs for 42x36
Width 43.5" |Height 36" |Depth 20.25"
Strapped, tapered hood with block molding. Features a plywood and Maple construction. The hood base front panel is 42" but at the widest point with the molding, the total width is 43-1/2". The side panel is 19-1/2" deep, and 20-1/4" deep with the molding. The top of the chimney is 38" wide and 14-1/2" deep and the chimney section is trimmable by 6" to make the total height 30", if needed. The height of the panel and molding section on bottom is 8-1/4". The hood has a two-piece construction for easy mounting and access to fan and ducting. Ships assembled.
Specs for 42x48
Width 43.5" |Height 48" |Depth 20.25"
Strapped, tapered hood with block molding. Features a plywood and Maple construction. The hood base front panel is 42" but at the widest point with the molding, the total width is 43-1/2". The side panel is 19-1/2" deep, and 20-1/4" deep with the molding. The top of the chimney is 38" wide and 14-1/2" deep and the chimney section is trimmable by 6" to make the total height 42", if needed. The height of the panel and molding section on bottom is 8-1/4". The hood has a two-piece construction for easy mounting and access to fan and ducting. Ships assembled.
Specs for 48x36
Width 49.5" |Height 36" |Depth 20.25"
Strapped, tapered hood with block molding. Features a plywood and Maple construction. The hood base front panel is 48" but at the widest point with the molding, the total width is 49-1/2". The side panel is 19-1/2" deep, and 20-1/4" deep with the molding. The top of the chimney is 44" wide and 14-1/2" deep and the chimney section is trimmable by 6" to make the total height 30", if needed. The height of the panel and molding section on bottom is 8-1/4". The hood has a two-piece construction for easy mounting and access to fan and ducting. Ships assembled.
Specs for 48x48
Width 49.5" |Height 48" |Depth 20.25"
Strapped, tapered hood with block molding. Features a plywood and Maple construction. The hood base front panel is 48" but at the widest point with the molding, the total width is 49-1/2". The side panel is 19-1/2" deep, and 20-1/4" deep with the molding. The top of the chimney is 44" wide and 14-1/2" deep and the chimney section is trimmable by 6" to make the total height 42", if needed. The height of the panel and molding section on bottom is 8-1/4". The hood has a two-piece construction for easy mounting and access to fan and ducting. Ships assembled.
